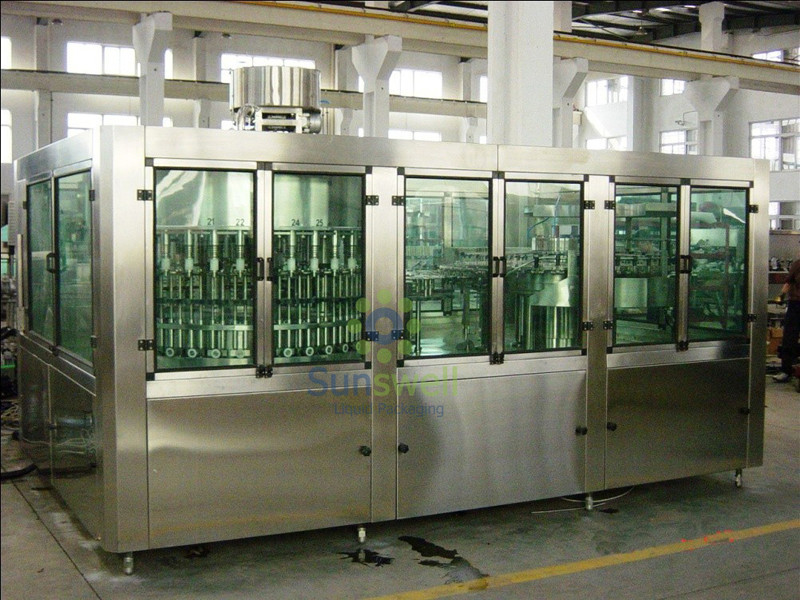

3 in 1 PET Plastic Bottle Mineral Water Filling Bottling Machine Washing Filling Capping Machinery
Application: still water, pure water, RO water, mineral water, sparkling water, alcoholic drinks, wine, etc.
Suitable for: PET bottles
Filling system: gravity filling
Production capacity: 5,000BPH-36,000BPH (500ml)
Technical features of water filling machine:
1. It is adopts that direct connection between air conveyor and inlet starwheel instead of screw and conveyor chains, which is easier for bottle changing.
2. There is no need to adjust the height of equipments through neck holding tech for bottle transporation. And what is only to change some spare parts.
3. High speed filling line is of clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.
4. By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.
5. Specially designed stainless steel bottle clamp does not contact the thread parts of the bottle neck, avoiding the second contamination.
6. High speed and large flow filling valve assures the high filling speed and exact fluid level.
7. Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.
8. The bottle-out starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain's height.
Equipment structure of water filling machine:
1. Rack
2. Rotary filler
3. Bottle infeed and outfeed system
4. Rotary rinser
5. Rotary capper
6. Control
Model&capacity:
| Model | XGF14- 12-5 | XGF16 -16-5 | XGF24 -24-6 | XGF32 -32-8 | XGF40 -40-10 | XGF50 -50-12 | XGF60 -60-15 | XGF72 -50-18 | XGF80-60-20 |
| Capacity [BPH/500ml] | 5,000BPH | 7,000BPH | 10,000BPH | 15,000BPH | 18,000 BPH | 21,000 BPH | 24,000 BPH | 30,000 BPH | 36,000BPH |
